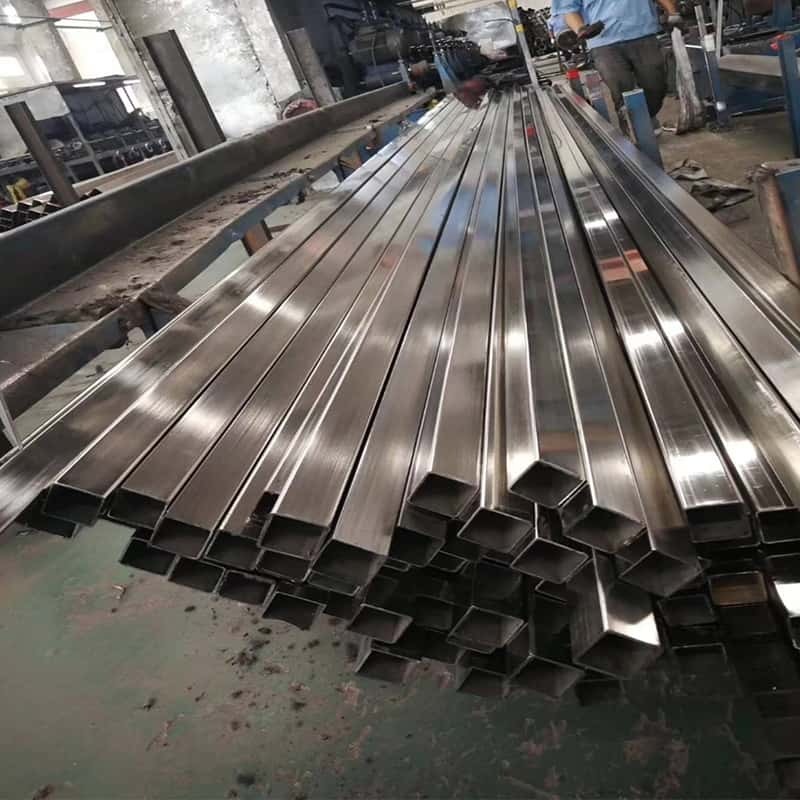

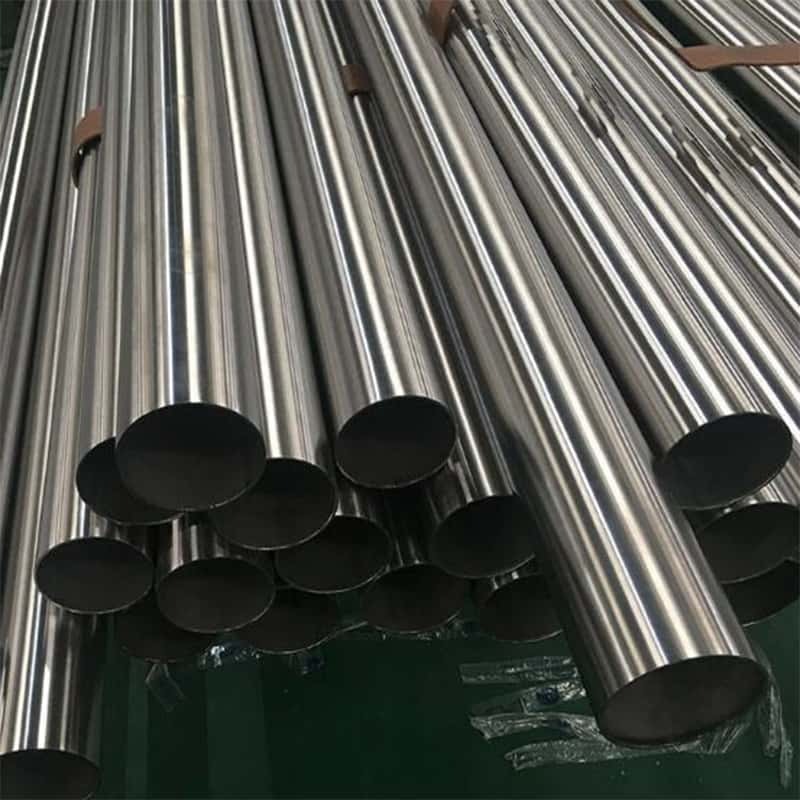

410 Stainless Steel Pipe

● Min. Order: 1 Ton
● FOB Port: Shanghai
● Payment Terms: Telegraphic Transfer (T/T)
● Country of Origin: China (mainland)
● Available Price Term:
① EXW China ② FOB China Port ③ CIF/CFR Destination Port etc.

DESCRIPTION

410 stainless steel pipe (UNS S41000) is a martensitic stainless steel mainly composed of 11.5-13.5% chromium and ≤ 0.15% carbon, without nickel. Unlike the austenitic structure of 321/321H, 410 achieves high strength and hardness through heat treatment (quenching+tempering), but has weaker corrosion resistance and high-temperature performance, making it suitable for low to medium corrosion environments such as mechanical components, cutting tools, valves, etc.


Specification


International StandardASTM, AISI, JIS, ISO, EN, DIN, BS
Outer Diameter1/8″ – 80″ , DN6 – DN2000 , 10.3mm – 2032mm
Wall ThicknessSch 10, 40, 80, 160 &XXH
 Tube TypeSeamless or Welded(PLASMA+TIG)
Surface FinishPolishing, Annealing, Pickling, Bright
Technical TreatmentCold Rolled, Hot Rolled
Mill Test Certificate(MTC)EN10204 3.1
Test ContentFlange & Flaring Test,Reverse Flattening Test, Roughness Test, Hydrostatic/Pneumatic Test, Eddy Current Test (NDT), Surface Finish Verification, Dimensional Inspection, Material Certification
Certificate

TUV ISO 9001:2015 , PED 2014/68/EU , AD 2000-WO

DIN EN ISO 9606-1 , DIN EN ISO 14732 Welder Certificate

EN ISO 9712 NDT Personnel Certificate EN ISO 15613 WPQR


Chemical Composition %


GRADECMnPSSiNiCrTi
410

0.080

2.000.0450.0301.09-1217-190.7>5XC


Mechanical Propertoes



Tensile strength (Mpa)Proof Stress (0.2% Offset)/MPaElongation Longitudinal (%)Elongation Transverse (%)
4105152053530
