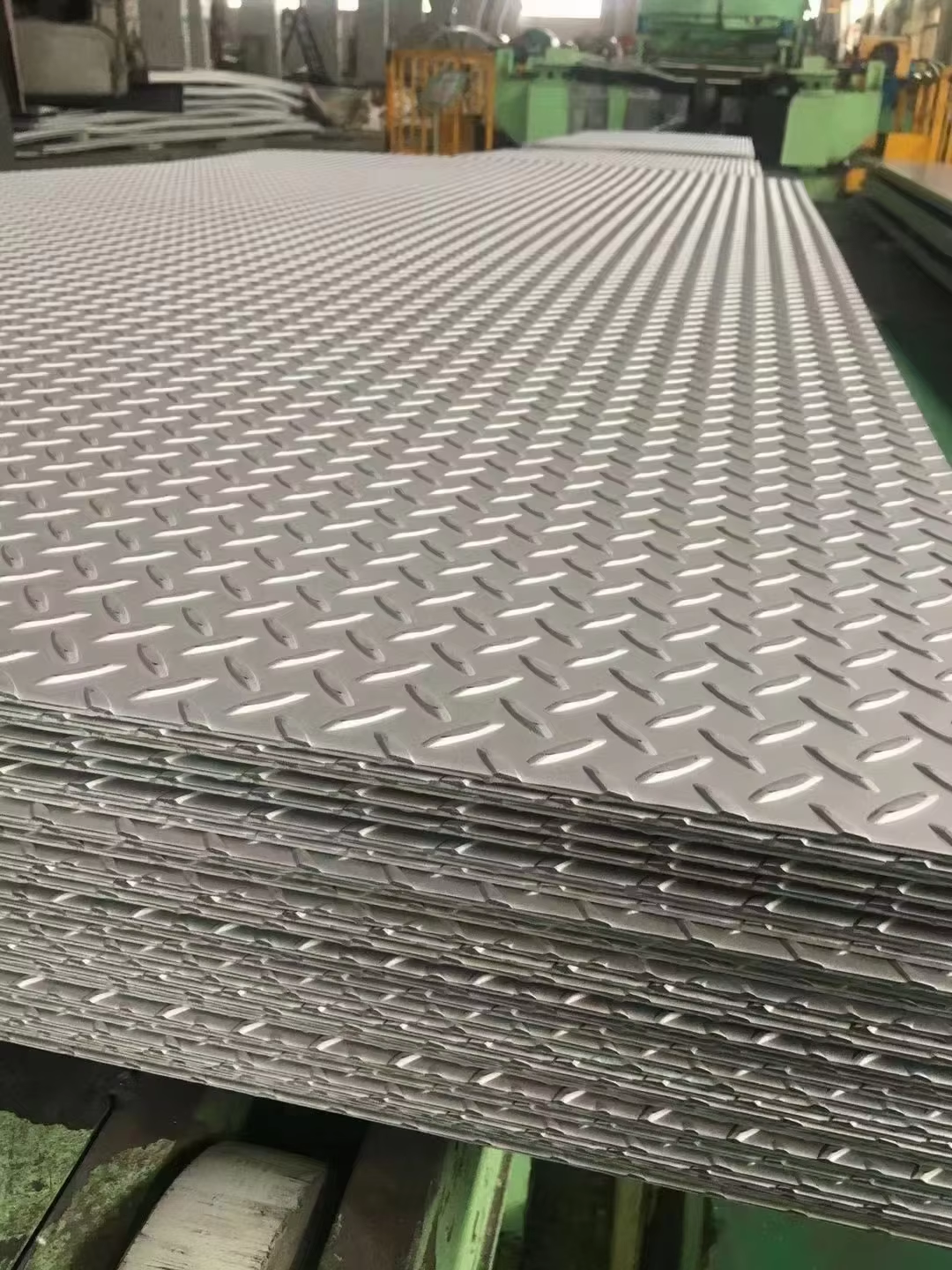

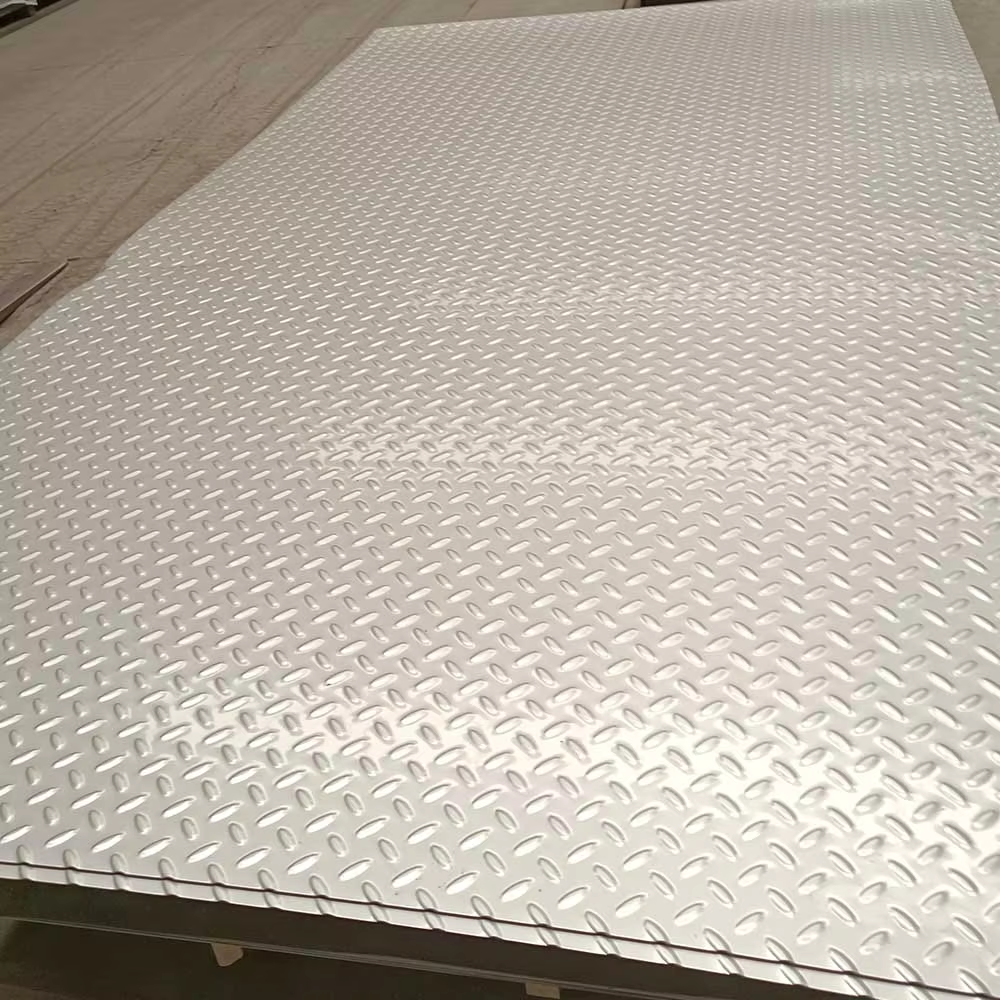

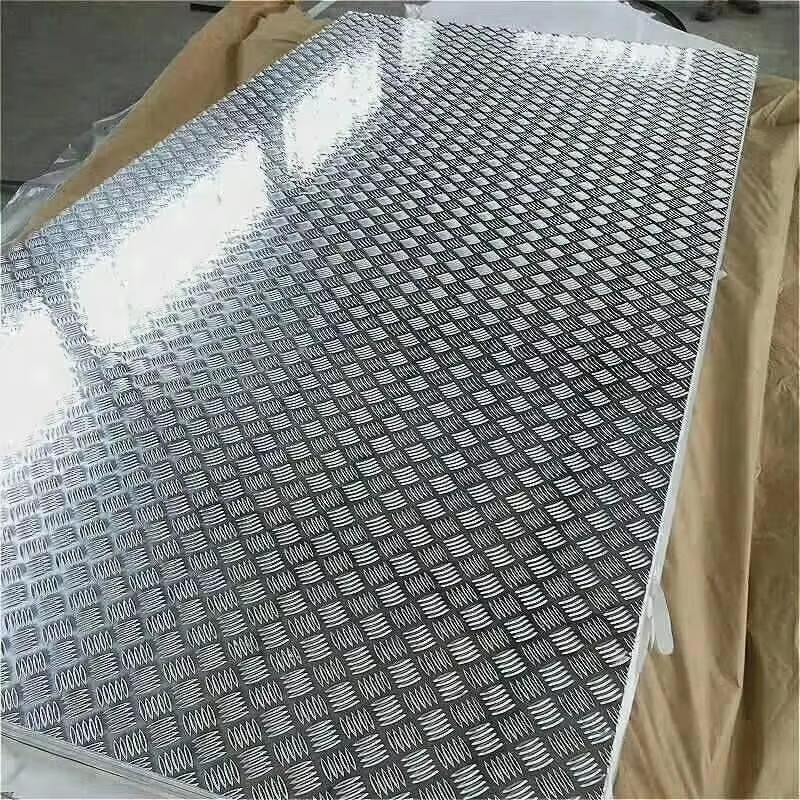

304 stainless steel embossed plate is a decorative plate with three-dimensional patterns formed on the surface of 304 stainless steel through mechanical rolling process. It retains the excellent corrosion resistance and non-toxic properties of 304 steel grade, while enhancing anti slip performance and visual effects through concave convex patterns. It is widely used in fields such as building curtain walls, elevator cars, catering equipment, and rail transit interiors that require both functionality and aesthetics.
Specification
| Grade | 304 Stainless Steel Checkered Plate |
| Surface Finish | Embossing |
| Standard | JIS/SUS/GB/DIN/ASTM/AISI/EN |
| Technique | Cold Rolled; Hot Rolled |
| Thickness | 0.3-4mm cold rolled; 3-16mm hot rolled; 16-100mm hot rolled;Customized according to customer requirements |
| Width | 1000mm, 1219mm, 1240mm, 1500mm, 1800mm, 2000mm |
| Length | 2000mm, 2438mm, 2500mm, 3000mm, 6000mm or as required |
| Color | Golden, Black, Sapphire Blue, Brown, Rose Gold, Bronze, Silver, etc |
| Application | Interior/Exterior decoration; Architectur; Evevator;Kitchen; Ceiling; Cabinet; Advertising nameplate; Roof structure; Shipbuilding |
| Lead Time | 7-15 working days after the receipt of 30% deposit |
| Payment Terms | 30% TT for deposit,70% TT /70% LC at sight balance before shipment |
| Price Terms | FOB, EXW, CIF, CFR |
| Packing | Wooden Pallet or according to customer's requirements |
Chemical Composition %
| GRADE | standard | C | Si | Mn | P | S | Cr | Ni | Mo |
| 304 | ASTM A240 | ≤0.07 | ≤0.75 | ≤2.00 | ≤0.045 | ≤0.030 | 18.00-20.00 | 8.00-11.00 |
|
Mechanical Propertoes
| ENGrade | Yield Strength 0.2% Rp0.2 (N/mm²) | Tensile Strength Rm (N/mm²) | Hardness | Vickers Hardness (HV) | Elongation A80 % Min. |
| 304 | 1.4301 | ≥205 | 36 | ANN | Max200 | ≥40 |
|
| ≥450 | ≥700 | 1/4 Hard | 220-250 | ≥20 |
|
| ≥700 | ≥850 | 1/2 Hard | 250-310 | ≥8 |
|
| ≥880 | ≥1000 | 3/4 Hard | 310-370 | ≥4 |
|
| ≥1020 | ≥1150 | Full Hard | ≥370 | ≥1 |
