304 Stainless Steel flat Bar

● Min. Order: 1 Ton
● FOB Port: Shanghai
● Payment Terms: Telegraphic Transfer (T/T)
● Country of Origin: China (mainland)
● Available Price Term:
① EXW China ② FOB China Port ③ CIF/CFR Destination Port etc.

Email：sale1@ybtmetalproducts.com

Whatsapp：+86 13338776236

Message

DESCRIPTION

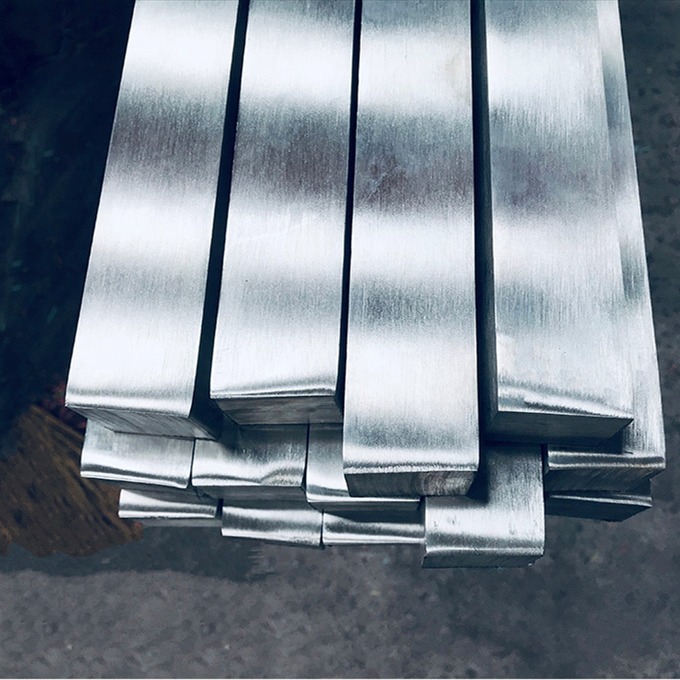

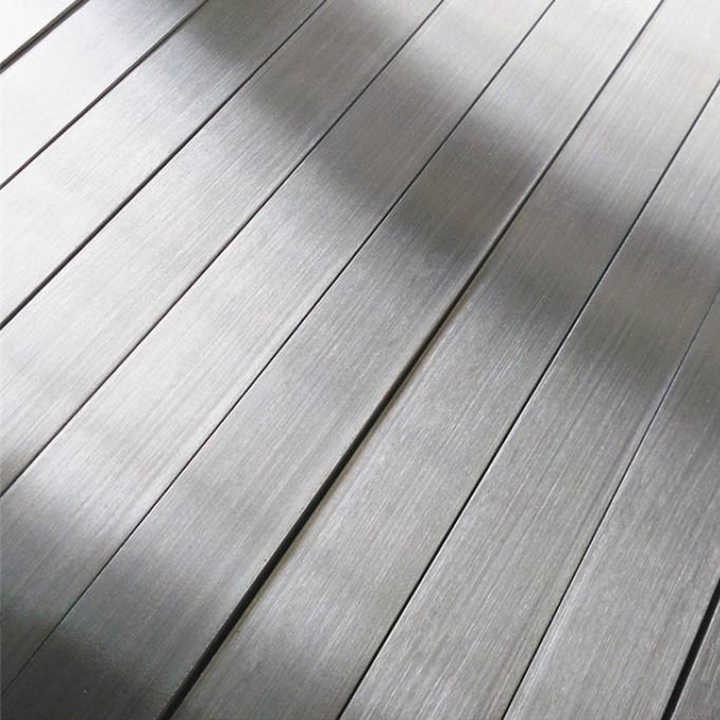

304 stainless steel flat bar or “flat stock” is an excellent candidate for most processing techniques as well as both indoor and outdoor applications. This product has a semi-smooth, dull grey finish and sharp defined edges with accurate dimensions throughout length. 304 stainless steel is a high strength material with excellent corrosion resistance making it ideal for shelves, brackets, bracing, sculptures, and other architectural uses. Also found within the food and beverage industry, aerospace applications, and chemical processing. ASTM A276-10 is the standard specification for structural stainless steel.

Available Sizes

Size	Length	Weight (lbs/ft)
1/8" x 1/2"	144.00"	0.210
1/8" x 5/8"	144.00"	0.266
1/8" x 3/4"	144.00"	0.319
1/8" x 1"	144.00"	0.425
1/8" x 1-1/4"	144.00"	0.532
1/8" x 1-1/2"	144.00"	0.638
1/8" x 1-3/4"	144.00"	0.744
1/8" x 2"	144.00"	0.850
1/8" x 2-1/2"	144.00"	1.059
1/8" x 3"	144.00"	1.280
1/8" x 4"	144.00"	1.700
1/8" x 5"	144.00"	2.126
1/8" x 6"	144.00"	2.559
3/16" x 1/2"	144.00"	0.319
3/16" x 3/4"	144.00"	0.477
3/16" x 1"	144.00"	0.638
3/16" x 1-1/4"	144.00"	0.797
3/16" x 1-1/2"	144.00"	0.956
3/16" x 2"	144.00"	1.275
3/16" x 2-1/2"	144.00"	1.593

Chemical Composition %

GRADE	C	Si	Fe	Mn	P	S	Cr	Ni
304	≤0.08	≤1.00	66.34-74	≤2.00	≤0.045	≤0.03	≤20.00	8-10.5

Mechanical Propertoes

Grade	Density	Yield Tensile Strength	Ultimate Tensile Strength	Temper	Hardness Rockwell
304	8.0 g/cc	≥276	≥310	Annealed	B70
